Industrial H Beam Production Line Metal Punching Machine For Sheet Metal Hole Punch

পণ্যের বিবরণ

Place of Origin: China

পরিচিতিমুলক নাম: Friendship Machinery

সাক্ষ্যদান: CE, ISO

Model Number: FSM-PB

পেমেন্ট এবং শিপিং শর্তাবলী

Minimum Order Quantity: 1

Packaging Details: wooden pallet

Delivery Time: 20 working days

Supply Ability: 30 sets per month

সেরা মূল্য পান
বিশেষভাবে তুলে ধরা:

h beam straightening machine

,

submerged arc welding machine

Industrial H Beam Production Line Metal Punching Machine For Sheet Metal Hole Punch

1. Applicable industry



    The machine is the special equipment used for angle steel punching, marking & shearing in the field of angle steel tower industry.





2. Specifications of TAPM1516

Model TAPM1516
Angle size (Q235) L40*40*3mm to L150*150*16mm
Maximum punching diameter * thickness Φ26*16
Punching force 1000KN
Marking force 800KN
Cutting force 1800KN
Maximum length of blank 12 or 14m
Maximum length of finished 10m
Punches per side 3
Group of marking letters 4
Stadia servo motor power 1.3KW * 2, YASKAWA
NC carriage motor power 4.4KW, YASKAWA
Motor power of infeed conveyor 2.2KW
Motor power of overturn rack 2.2KW
Motor power of hydraulic station 30KW
Dimension of letter 14*10*19 mm
CNC axes 3
Cutting mode Single blade cutting
Maximum feeding speed of angle 80m/min
Programming mode Lofting software or manual program
Overall dimensions ≈25000*7500*3000mm
Gross weight of machine ≈16500kg

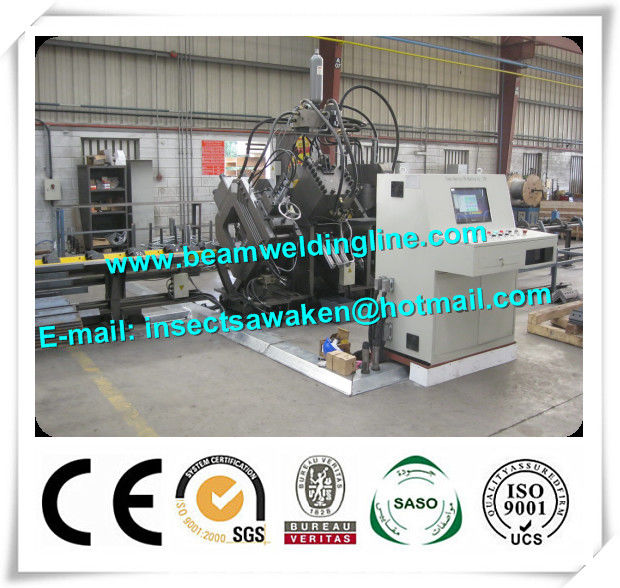

Industrial H Beam Production Line Metal Punching Machine For Sheet Metal Hole Punch 0



Industrial H Beam Production Line Metal Punching Machine For Sheet Metal Hole Punch 1
